20′ panels are built out of 1.25″-14ga round tubing and 5/8″ solid rod for the uprights. The rod is cut on a band saw to prevent sharp edges that can appear when being sheared with a blade. We build panels for pigs, sheep, goats, cattle, horses, buffalo, and everything in between. All the steel going into these panels is made in the USA. Heavier panels can be made with either a heavier wall or a larger tube diameter. Custom panels are available upon request. Clamps and splicers included.

Standard panels:

• 4 bar – 48″ x 20′
• 5 bar – 38.5″ x 20′
• 5 bar – 48″ x 20′
• 6 bar – 48″ x 20′
• 7 bar – 60″ x 20′

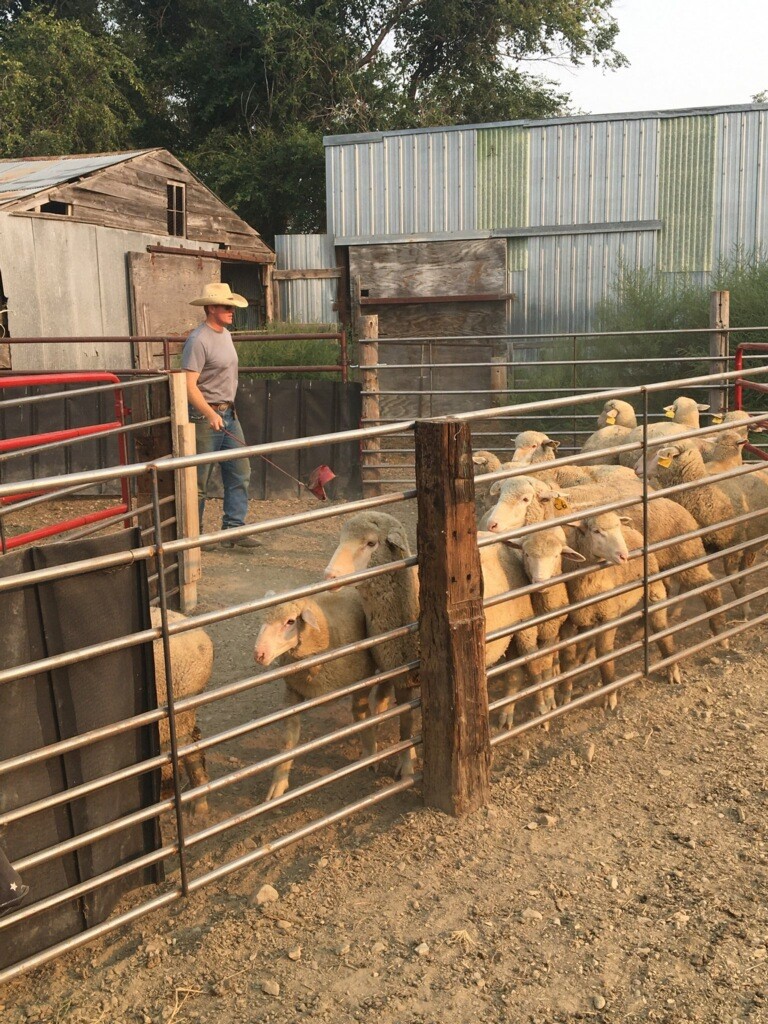

• 8 bar – 48″ x 20′ – The bottom 5 tubes have a 4″ gap between them for smaller animals. (See photo)

• 24’ long x 8’6” tall
• Average weight: 940 lbs
• Frame is constructed out of 2″x3″x11ga & 2″x3″x3/16″ Rect Tube
• Legs are 12’6” long made of 3″ Sch40 well pipe and weigh over 100 lbs each
• 5″ gap between sheets to allow wind to pass through
